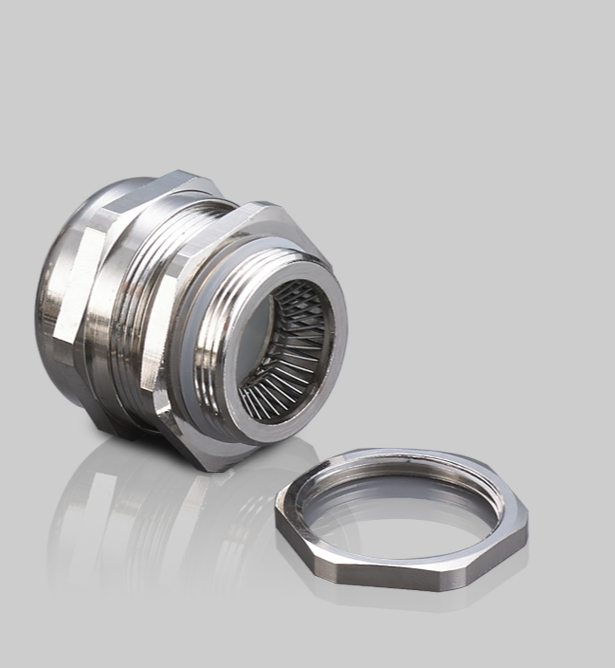

G(PF)型屏蔽金属电缆固定头S型
产品描述
参数
产品概述
材料:镀镍黄铜
弹簧材料:不锈钢
固定连接组件:采用UL认可的尼龙材料
防水圈:丁腈橡胶，(可定制硅橡胶)
O型圈:耐候橡胶，(可定制硅橡胶)
工作温度:-40℃至100℃
尺寸图
技术参数
| 型号 | 直径 | 屏蔽直径 | 高度H | 螺纹长度GL | 扳手尺寸 | W | 倍仕得货号 |
| mm | mm | mm | mm | mm | mm | ||
| G(PF)1/4" | 3-6.5 | 3.5-4.5 | 19 | 8 | 14 | 6 | G1407BR-EMC-S |
| G(PF)1/4" | 2-5 | 3.5-4.5 | 19 | 8 | 14 | 6 | G1405BR-EMC-S |
| G(PF)3/8" | 5-10 | 3.5-5.5 | 22 | 9 | 20 | 9 | G3810BR-EMC-S |
| G(PF)3/8" | 3-7 | 3.5-5.5 | 22 | 9 | 20 | 9 | G3807BR-EMC-S |
| G(PF)1/2" | 10-14 | 6-12 | 24 | 9 | 24 | 13 | G1214BR-EMC-S |
| G(PF)1/2" | 7-12 | 6-12 | 24 | 9 | 24 | 13 | G1212BR-EMC-S |
| G(PF)3/4" | 13-18 | 9-14 | 25 | 12 | 30 | 17 | G3418BR-EMC-S |
| G(PF)3/4" | 9-16 | 9-14 | 25 | 12 | 30 | 17 | G3416BR-EMC-S |
| G(PF)1" | 18-25 | 16-19 | 31 | 12 | 40 | 23 | G10025BR-EMC-S |
| G(PF)1" | 13-20 | 16-19 | 31 | 12 | 40 | 23 | G10020BR-EMC-S |
| G(PF)1 1/4" | 22-32 | 19.5-24 | 37 | 15 | 50 | 30 | G11432BR-EMC-S |
| G(PF)1 1/4" | 20-26 | 19.5-24 | 37 | 15 | 50 | 30 | G11426BR-EMC-S |
| G(PF)1 1/2" | 32-38 | 27.5-33 | 37 | 15 | 57 | 37 | G11238BR-EMC-S |
| G(PF)1 1/2" | 25-31 | 27.5-33 | 37 | 15 | 57 | 37 | G11231BR-EMC-S |
| G(PF)2" | 37-44 | 31-35 | 38 | 15 | 64 | 44 | G20044BR-EMC-S |
| G(PF)2" | 29-35 | 31-35 | 38 | 15 | 64 | 44 | G20035BR-EMC-S |
