G（PF）型多孔尼龙电缆固定头

产品描述

参数

产品概述

材料:采用UL认可的尼龙材料

防水圈:丁腈橡胶 (可选EPDM, 硅橡胶，TPV等)

O型圈:EPDM （可选硅橡胶，TPV，氟橡胶等）

工作温度:-40℃至100℃

颜色种类:灰色、黑色，其他颜色可定做

孔数：可根据要求定做

材料种类:V0或F1可定做

如需其他材料或者颜色，请垂询！Other material or Colors upon request.

O型圈默认预装！ All O rings are pre-assembled as standard.

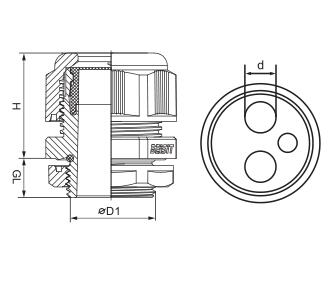

尺寸图

技术参数

孔数	型号	孔数X直径	高度H	螺纹长度GL	扳手尺寸	倍仕得货号
孔数	型号	mm	mm	mm	mm	灰色	黑色
1	G1/2"S	1X5	26	10	24	G1/2"S-H1-5	G1/2"SB-H1-5
1	G1/2"S	1X8	26	10	24	G1/2"S-H1-8	G1/2"SB-H1-8
1	G1/2"B	1X7.5	28	13	27	G1/2"B-H1-7.5	G1/2"BB-H1-7.5
1	G1/2"B	1X9	28	13	27	G1/2"B-H1-9	G1/2"BB-H1-9
1	G3/4"	1X7.5	31	15	33	G3/4"-H1-7.5	G3/4"B-H1-7.5
1	G3/4"	1X10	31	15	33	G3/4"-H1-10	G3/4"B-H1-10
1	G3/4"	1X14.5	31	15	33	G3/4"-H1-14.5	G3/4"B-H1-14.5
1	G3/4"	1X15	31	15	33	G3/4"-H1-15	G3/4"B-H1-15
1	G1 1/2"	1X33	48	20	53	G1 1/2"-H1-33	G1 1/2"B-H1-33
2	G3/8"	2X3	22	10	19/22	G3/8"-H2-3	G3/8"B-H2-3
2	G1/2"S	2X5	26	10	24	G1/2"S-H2-5	G1/2"SB-H2-5
2	G1/2"B	2X6.7	28	13	27	G1/2"B-H2-6.7	G1/2"BB-H2-6.7
2	G3/4"	2X2.8	31	15	33	G3/4"-H2-2.8	G3/4"B-H2-2.8
2	G3/4"	2X4.4	31	15	33	G3/4"-H2-4.4	G3/4"B-H2-4.4
2	G3/4"	2X5.7	31	15	33	G3/4"-H2-5.7	G3/4"B-H2-5.7
2	G3/4"	5+8	31	15	33	G3/4"-H2-(5+8)	G3/4"B-H2-(5+8)
2	G3/4"	2X6	31	15	33	G3/4"-H2-6	G3/4"B-H2-6
2	G3/4"	2X6.3	31	15	33	G3/4"-H2-6.3	G3/4"B-H2-6.3
2	G3/4"	2X8	31	15	33	G3/4"-H2-8	G3/4"B-H2-8
2	G1 "	2X4.5	39	15	42	G1"-H2-4.5	G1"B-H2-4.5
3	G3/8"	3X3	22	10	19/22	G3/8"-H3-3	G3/8"B-H3-3
3	G1/2"S	3X4	26	10	24	G1/2"S-H3-4	G1/2"SB-H3-4
3	G3/4"	3X4.5	31	15	33	G3/4"-H3-4.5	G3/4"B-H3-4.5
3	G3/4"	3X6	31	15	33	G3/4"-H3-6	G3/4"B-H3-6
3	G3/4"	3X7	31	15	33	G3/4"-H3-7	G3/4"B-H3-7
3	G1 "	1X6.7+2X10.2	39	15	42	G1"-H3-（6.7+10.2）	G1"B-H3-（6.7+10.2）
3	G1 "	1X7.6+2X11.7	39	15	42	G1"-H3-（7.6+11.7）	G1"B-H3-（7.6+11.7）
3	G2"	3X6.5	49	20	65	G2"-H3-6.5	G2"B-H3-6.5
4	G3/8"	4X2	22	10	19/22	G3/8"-H4-2	G3/8"B-H4-2
4	G3/4"	4X5	31	15	33	G3/4"-H4-5	G3/4"B-H4-5
4	G3/4"	4X6	31	15	33	G3/4"-H4-6	G3/4"B-H4-6
4	G1 "	2X5+2X8	39	15	42	G1"-H4-（2X5+2X8）	G1"B-H4-（2X5+2X8）
4	G1 "	4X7	39	15	42	G1"-H4-7	G1"B-H4-7
4	G1 "	4X8	39	15	42	G1"-H4-8	G1"B-H4-8
4	G1 1/4"	4X10	48	20	53	G1 1/4"-H4-10	G1 1/4"B-H4-10
5	G3/4"	5X4	31	15	33	G3/4"-H5-4	G3/4"B-H5-4
6	G1/2"S	6X3.2	26	10	24	G1/2"S-H6-3.2	G1/2"SB-H6-3.2
6	G1 "	6X6	39	15	42	G1"-H6-6	G1"B-H6-6
8	G1 "	8X5	39	15	42	G1"-H8-5	G1"B-H8-5
8	G1 1/4"	8X6	48	20	53	G1 1/4"-H8-6	G1 1/4"B-H8-6
9	G1 1/2"	9X8	49	20	60	G1 1/2"-H9-8	G1 1/2"B-H9-8
25	G1 1/2"	25X5	49	20	60	G1 1/2"-H25-5	G1 1/2"B-H25-5
